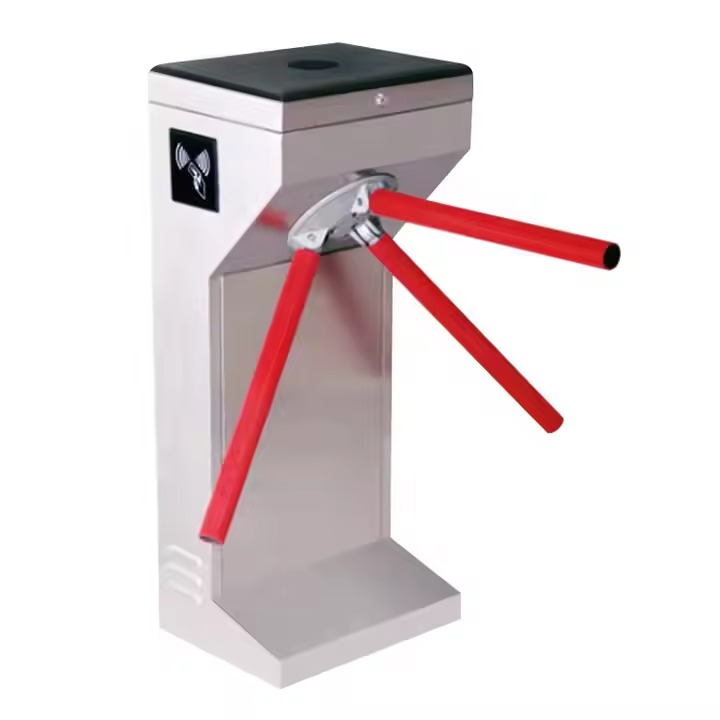

BE-100 Tripod Turnstile Semi-Automatic

1. Running stable without noise and mechanical impact

2. When power off. Arm drop down automatically

3. Two-way or One-way adjustable

4. Indoor and outdoor application

5. Standard Interface. integrated with Face. ID / IC. UHF. Fingerprint Readers

6. Equipped with standard dry contact signal interface, can be integrated with all types of access control panel,

7. Equipped with LED directional indication / status lights.

8. The positive action lock also helps in preventing two passage at one time

10. Modular assembly provides for moving turnstiles in through confined routes for final installation

11. Modular plug-in electronics provides for easy and quick repairs.

Description

Structure parameters
Housing material	304 grade stainless steel
Surface treatment	Brushed finish
Technical parameters
Size	4203301000mm
Lane width	600mm
Passing speed	45–50 people/min
Open/close speed	1.0sec
Turning angle	120 degree
MCBF	5.000.000 times
Weight	30kg
Application	Indoor or outdoor ( Waterproof )
Rotating directional	Single way or Bi-directional adjustable
Noise	<55db
Operating temperature	-25 to 70℃
Relative humidity	5% to 95%
Package	Carton box inside. Wooden case outside
Electronic parameters
Power supply	220V/AC, 50/60HZ
Rated power	60W
Input signal	Dry contact
Driving motor	Solenoid
Method of position	Limiter
