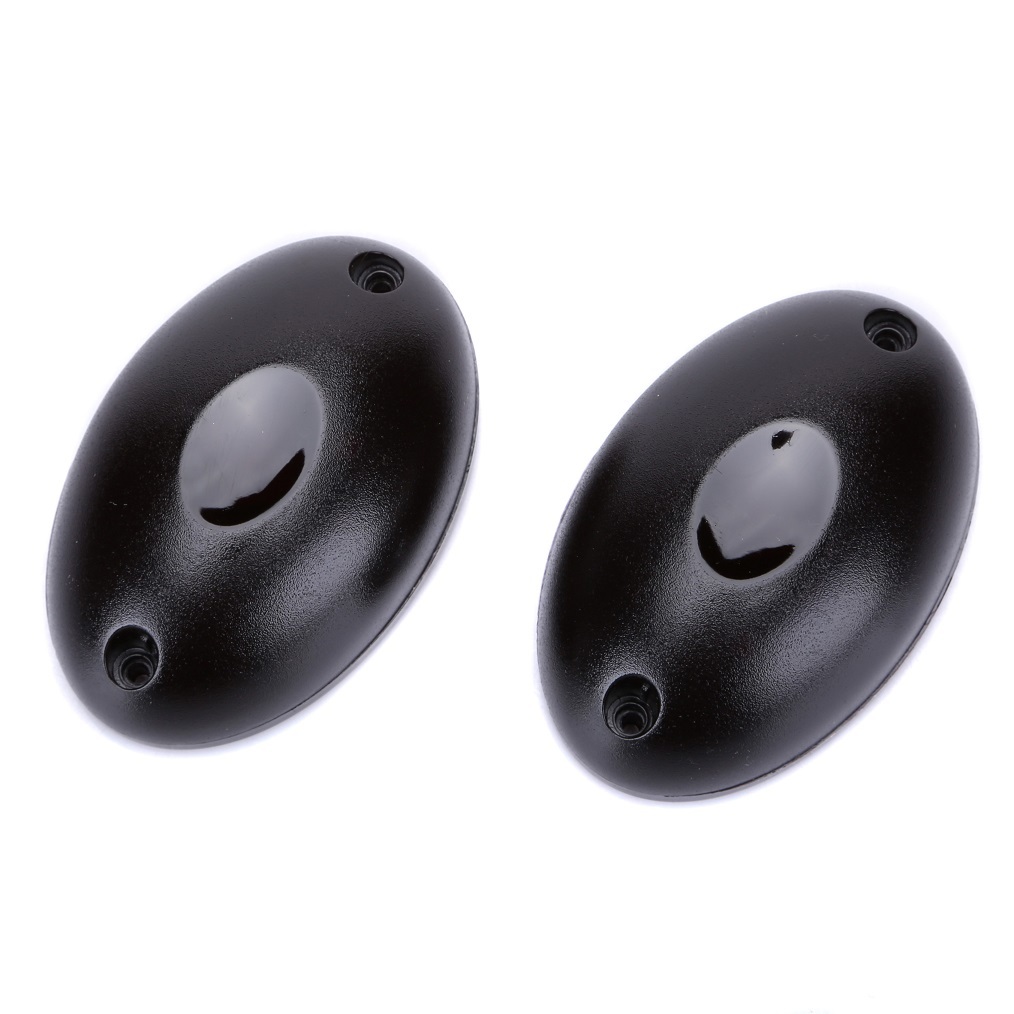

Photocell

Photocell use for detecting obstacle on moving condition, to ensure the safety of personnel and property.

Main technical parameters:

Receiver range: ≤15m (range can be reduced to 30% in bad weather conditions: fog, rain, dust, etc.)
Infrared frequency: 1.92 kHz
Power supply: 12 to 24V AC/DC
Wave length: 940nm
Input current: RX 15mA, TX 30mA
Operating temperature: -20°C to 70°C
Relay output: 1A max 36V
Dimensions: 49.2 x 76 x 21.6mm
5 wires connection
