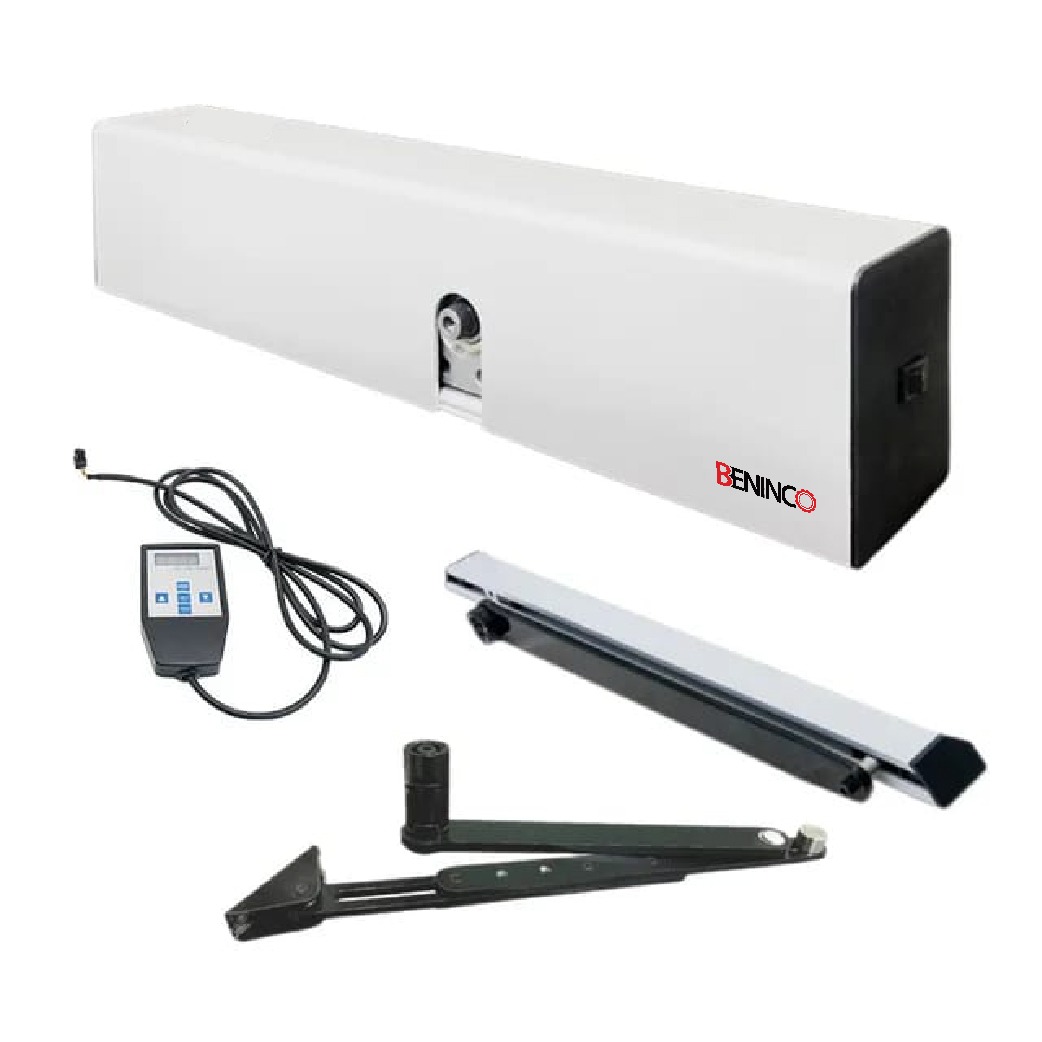

SWING DOOR SPRING-CLOSING BEN-85

Drive unit: 24V DC motor, spring close door
Anti-extrusion device: standard
Power supply voltage: AC220V ± 10%, 50/60Hz
Rated power consumption: 100W (MAX)
Opening time (speed): 3-7S adjustable
Closing time (speed): 3-7S adjustable
Open time: 0.5-30S adjustable
Opening angle: 80°-100°
Drive arm: pull arm, push arm
Unit size: 610 X128 X88 (mm)
Ambient temperature: -20 ~ +45°C
Relative humidity: ≤85%

Description

The DSW85 is a microprocessor-controlled automatic door closer that is simple in design and self-monitoring.
The microprocessor provides precise position control and speed control, resulting in the optimal motion mode to
control the movement path of each door.
In the event of a power failure, the unit will start closing spring force automatically .
Depending on the application, pull-arm and push-arm mounting is available.
Particularly suitable for use in conjunction with fire doors.
